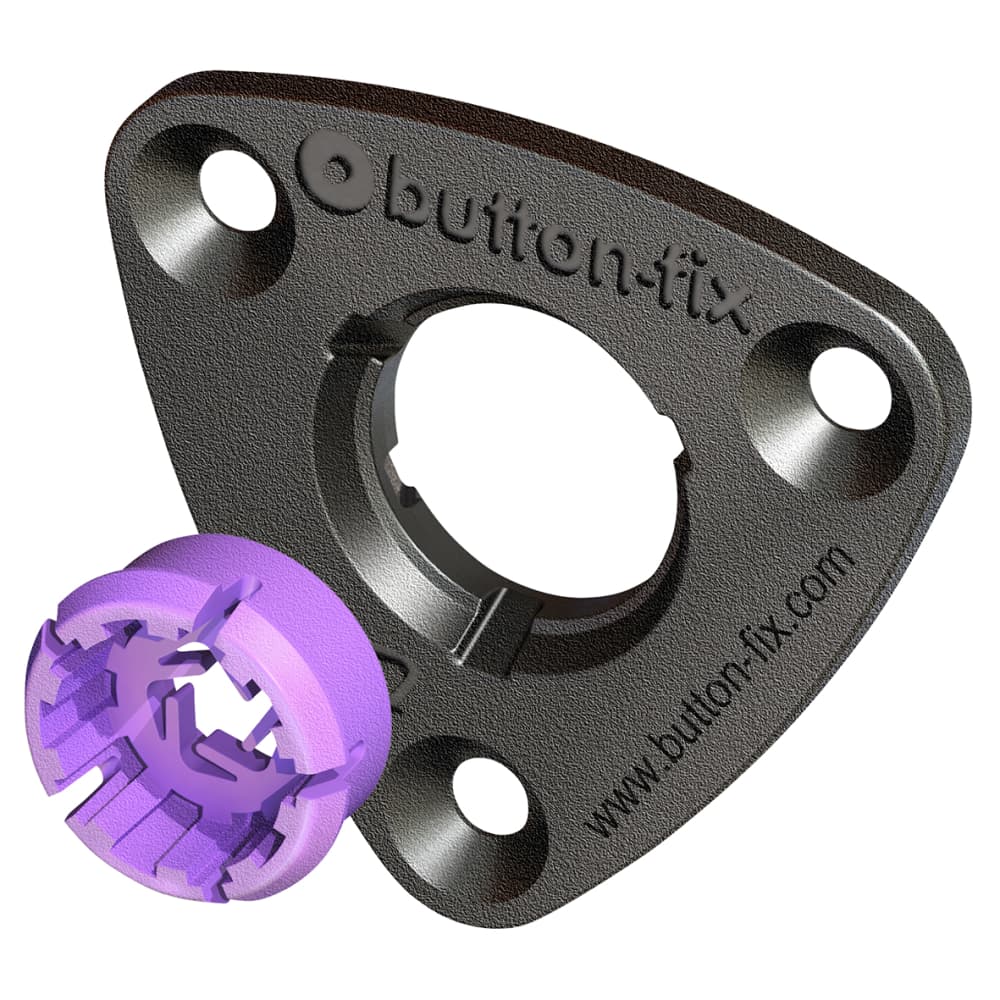

Button-fix Type 3 Panel Fixings

A clean, hidden way to hang your felt wall panels. Button-fix Type 3 holds the panel flat to the wall with no visible screws and no trim. You press the panel on to mount it, and pull it off whenever you need to get behind it. The same fixings work on ceilings too.

Each fixing is a two-part clip. The fix screws to the back of the panel and the button screws to the wall. Bring the two together and they push on with a firm click.

One set is one fix plus one button, giving one connection point. A 600 x 600mm panel uses four sets, and every larger panel uses six. Four fixings support a vertical panel up to around 60 kg, independently strength-tested.

How do you hang felt acoustic wall panels without screws showing?

Button-fix Type 3 is a two-part push-fit clip. The fix goes on the back of the panel and the button goes on the wall. The panel pushes straight on and holds firm, with no fixings visible on the face.

What fixings do you need for PET felt wall panels?

For lightweight felt wall panels and tiles, Button-fix Type 3 is the clean choice. Use four sets on a 600 x 600mm panel and six on every larger size. Count your panels and multiply to work out how many sets you need.

Can you remove felt wall panels after fitting?

Yes. Type 3 uses a straight push on, pull off action, so panels lift away for cleaning, access or reconfiguring, then push back on.

How do you line up the two halves?

Two ways. Measure the panel and the wall and mark the matching positions by hand. Or use the Button-fix marker tool. It snaps into each fix on the panel back, and when you press the panel against the wall it leaves a guide point exactly where each button goes. The marker tool is sold separately and is reusable across every panel on the job.

How to fit

1. Screw the fixes to the back of the panel, at least 35mm in from the edge.
2. Snap a marker into each fix, line the panel up on the wall and press it firmly. Or measure and mark the positions by hand.
3. Screw a button to the wall at each mark. Nip the screw up lightly so the button can float a little and line up with its fix.
4. Take the markers out and push the panel onto the buttons. To remove, pull it straight off.

Step-by-step instructions are in our wall panel fitting guide (PDF).

The detail

• Two-part push-fit clip, straight push on and pull off
• PBT fix for the panel back, acetal button for the wall, made in the UK
• Surface-mounted or rebated flush
• One set is one fix plus one button, giving one connection point. Four sets on a 600 x 600mm panel, six on every larger size
• For walls and ceilings
• Screws are not included. For the fixes, use short pan or flange head screws that can't reach the face of the panel. For the buttons, use pan head screws and plugs to suit your wall
• Marker tool sold separately
• Dispatch: up to 10 working days
