3D
Drape Acoustic Ceiling Baffle Kit

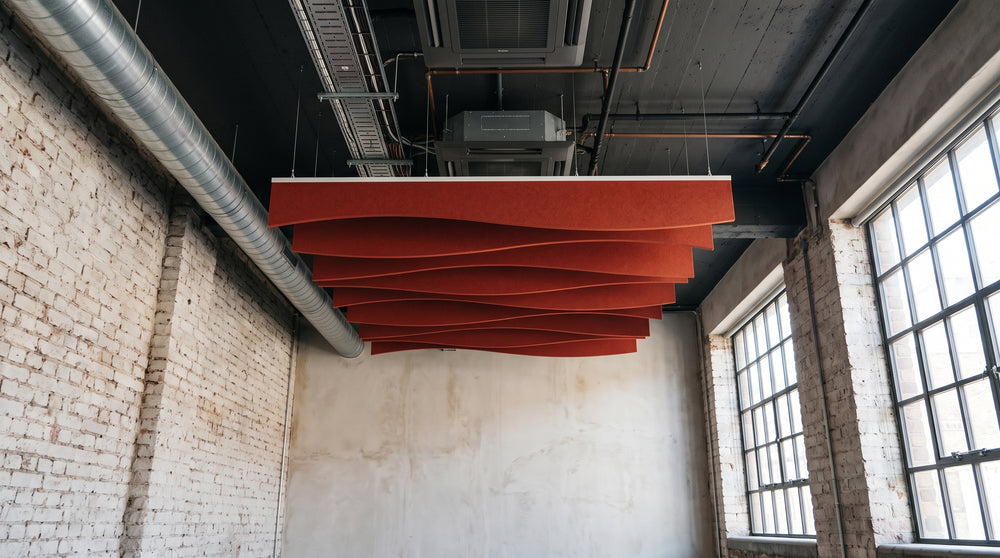

Drape is a set of eight PET felt baffles cut with a soft, even wave along the lower edge. Each blade is the mirror of its neighbour, so the wave passes gently from one blade to the next and the ceiling reads as a slow ripple of colour. It works as a decorative ceiling feature first, and the felt also helps soften sound in rooms with hard surfaces and high ceilings.
Choose 12mm or 24mm PET felt, both with 75% post-consumer recycled content. 12mm comes in 48 colours and 24mm in 20 colours. Each kit is made to order in your chosen colour, approx. 10 working days. Backed by a 10-year guarantee on the felt and 2 years on the rails and wires.
What's in the kit
- 8 PET felt blades, 12mm or 24mm, 2400mm long
- 8 aluminium top rails, 2400mm: silver anodised for 12mm blades, black for 24mm blades
- 16 grippers
- 16 polished steel suspension wires
- 16 ceiling anchors
Size
One kit covers a 2400 x 2120mm footprint in 12mm, or 2400 x 2125mm in 24mm, with eight blades hung at 300mm centres. Blade depth follows the wave, from 255 to 345mm. Each blade hangs on two wires, one at each end of its rail.
Need more than three kits, or planning a larger ceiling? Contact us for project pricing.
Class D, αw 0.30
Tested to ISO 354 with the board fixed flat on a rigid backing, rated to ISO 11654. NRC 0.40 is our calculation from the lab's results.
Tested performance
| Mounting | Like | αw | Class | NRC |
|---|---|---|---|---|
| Flat on a rigid backing (ISO 354) | A panel fixed to a wall | 0.30 (MH) | D | 0.40 |
12mm board, 2.4kg/m², tested to ISO 354 and rated to ISO 11654; NRC 0.40 calculated by us from the lab's results. Figures are per square metre of board, so they work for any size; for a panel hung or standing free they are a conservative guide, because its back face and edges absorb sound too. See how to read acoustic panel ratings.
Acoustic performance in your space varies with how the product is mounted, the room, and how much material is used. For the full breakdown see the science page, or contact us.
Class A, αw 0.90
NRC 0.90, tested to ASTM C423-23 with a 200mm or 400mm air gap. Class A is our calculation from the lab's results using the ISO 11654 method. Flat with no air gap: NRC 0.65, and αw 0.50 (MH), Class D, calculated from the EN ISO 354 results.
Tested performance
| Mounting | Like | NRC | SAA |
|---|---|---|---|
| Flat, no air gap (Type A) | A panel fixed to a wall | 0.65 | 0.64 |
| 200mm air gap (E200) | Panels on battens, a suspended tile | 0.90 | 0.87 |
| 400mm air gap (E400) | A raft hung below a ceiling | 0.90 | 0.87 |
24mm board, 4.87kg/m², tested to ASTM C423-23; the flat result also to EN ISO 354. Figures are per square metre of board, so they work for any size; for a panel hung or standing free they are a conservative guide, because its back face and edges absorb sound too. See how to read acoustic panel ratings.
Acoustic performance in your space varies with how the product is mounted, the room, and how much material is used. For the full breakdown see the science page, or contact us.
Most orders are dispatched within approx. 10 working days. Free UK mainland delivery on orders over £50. £6.99 under £50.
If you need help choosing accessories or mounting options, just get in touch and we'll help.
Every Felted product is made to order in your chosen colour and size. Want to change colour or size after ordering? Tell us as soon as possible and we'll do our best to accommodate before production begins. Once made, items can't be returned unless faulty. If anything arrives damaged, email hello@felted.uk within 48 hours with photos and we'll put it right.
If you'd like to check a colour first, order our colour sample pack. See our Terms & Conditions for full details.
