3D
Acoustic Ceiling Raft – Hexagon – 24mm PET Felt

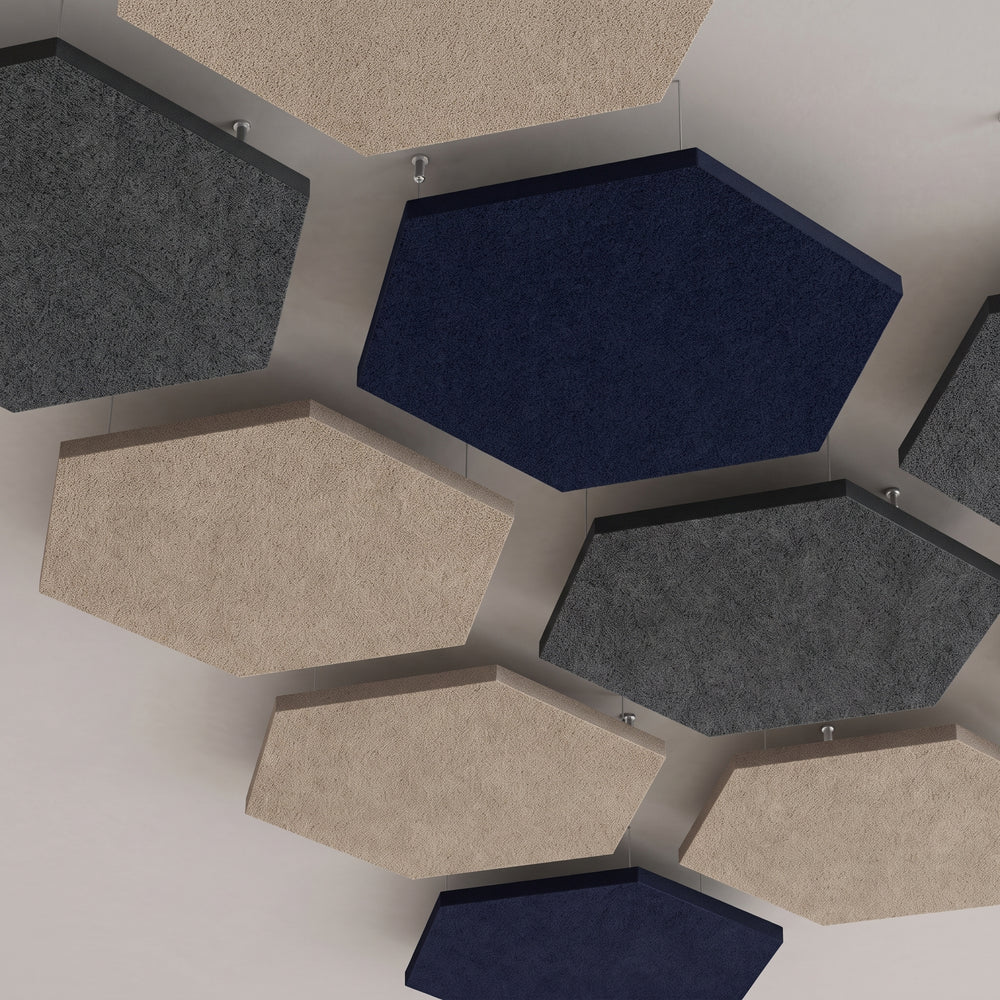

Bring colour and shape to your ceiling with a hexagon felt raft. Hang one as a feature or group several across a room. The felt also softens sound in the room, taking the edge off echo.
Fire rated Class B-s1,d0 to BS EN 13501-1:2018.
24mm thick, in 20 colours. Four sizes, measured point to point:
600mm, about 1.1kg
800mm, about 2.0kg
1000mm, about 3.2kg
1200mm, about 4.6kg
Supplied with 2 pairs of 1m ceiling wires (4 wires). Each wire fixes to a flat plate screwed into the top face of the raft, so nothing shows from the floor. Extra pairs are available separately.
Made to order with a lead time of approx. 10 working days, and backed by a 10-year guarantee.
Class A, αw 0.90
NRC 0.90, tested to ASTM C423-23 with a 200mm or 400mm air gap. Class A is our calculation from the lab's results using the ISO 11654 method. Flat with no air gap: NRC 0.65, and αw 0.50 (MH), Class D, calculated from the EN ISO 354 results.
Tested performance
| Mounting | Like | NRC | SAA |
|---|---|---|---|
| Flat, no air gap (Type A) | A panel fixed to a wall | 0.65 | 0.64 |
| 200mm air gap (E200) | Panels on battens, a suspended tile | 0.90 | 0.87 |
| 400mm air gap (E400) | A raft hung below a ceiling | 0.90 | 0.87 |
24mm board, 4.87kg/m², tested to ASTM C423-23; the flat result also to EN ISO 354. Figures are per square metre of board, so they work for any size; for a panel hung or standing free they are a conservative guide, because its back face and edges absorb sound too. See how to read acoustic panel ratings.
Acoustic performance in your space varies with how the product is mounted, the room, and how much material is used. For the full breakdown see the science page, or contact us.
Most orders are dispatched within approx. 10 working days. Free UK mainland delivery on orders over £50. £6.99 under £50.
If you need help choosing accessories or mounting options, just get in touch and we'll help.
Every Felted product is made to order in your chosen colour and size. Want to change colour or size after ordering? Tell us as soon as possible and we'll do our best to accommodate before production begins. Once made, items can't be returned unless faulty. If anything arrives damaged, email hello@felted.uk within 48 hours with photos and we'll put it right.
If you'd like to check a colour first, order our colour sample pack. See our Terms & Conditions for full details.
